Nice Apollo 1600 Dual Swing Gate Opener Kit with 636 Control Board
The Nice Apollo 1600 Dual Swing Gate Opener Kit is a robust and reliable solution for automating dual swing gates up to 16 feet per leaf and 600 pounds each. Designed for residential, agricultural, and light commercial applications, this system delivers synchronized, smooth gate movement with a 15-second open/close cycle per direction.
Powered by a 12V DC battery, the Apollo 1600 offers flexible charging options via solar or AC power, making it ideal for remote or off-grid installations. Its push-to-open and pull-to-open configurations accommodate various gate layouts, while the rust-proof, self-lubricating linear actuators ensure long-term durability with minimal maintenance.

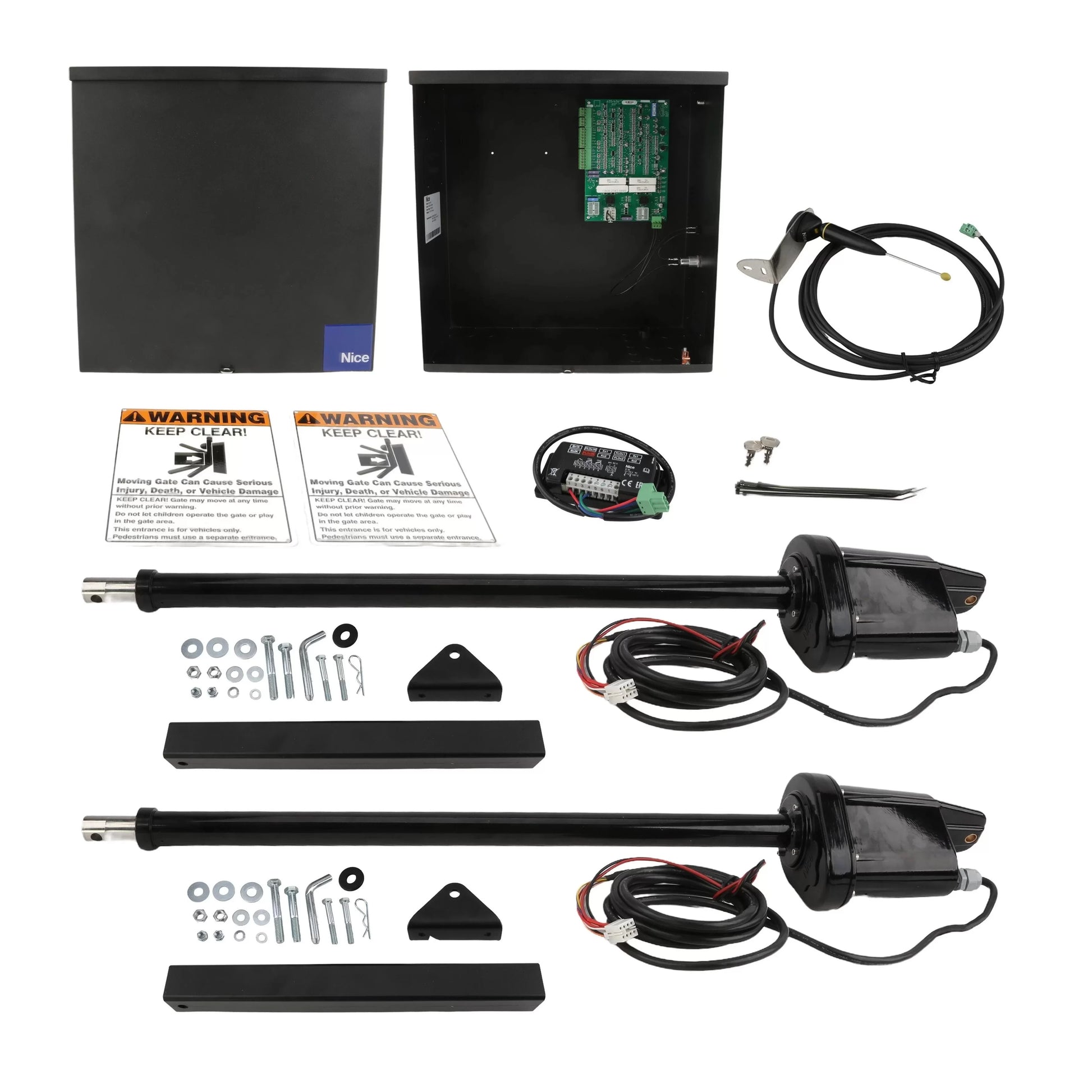

What’s Included:

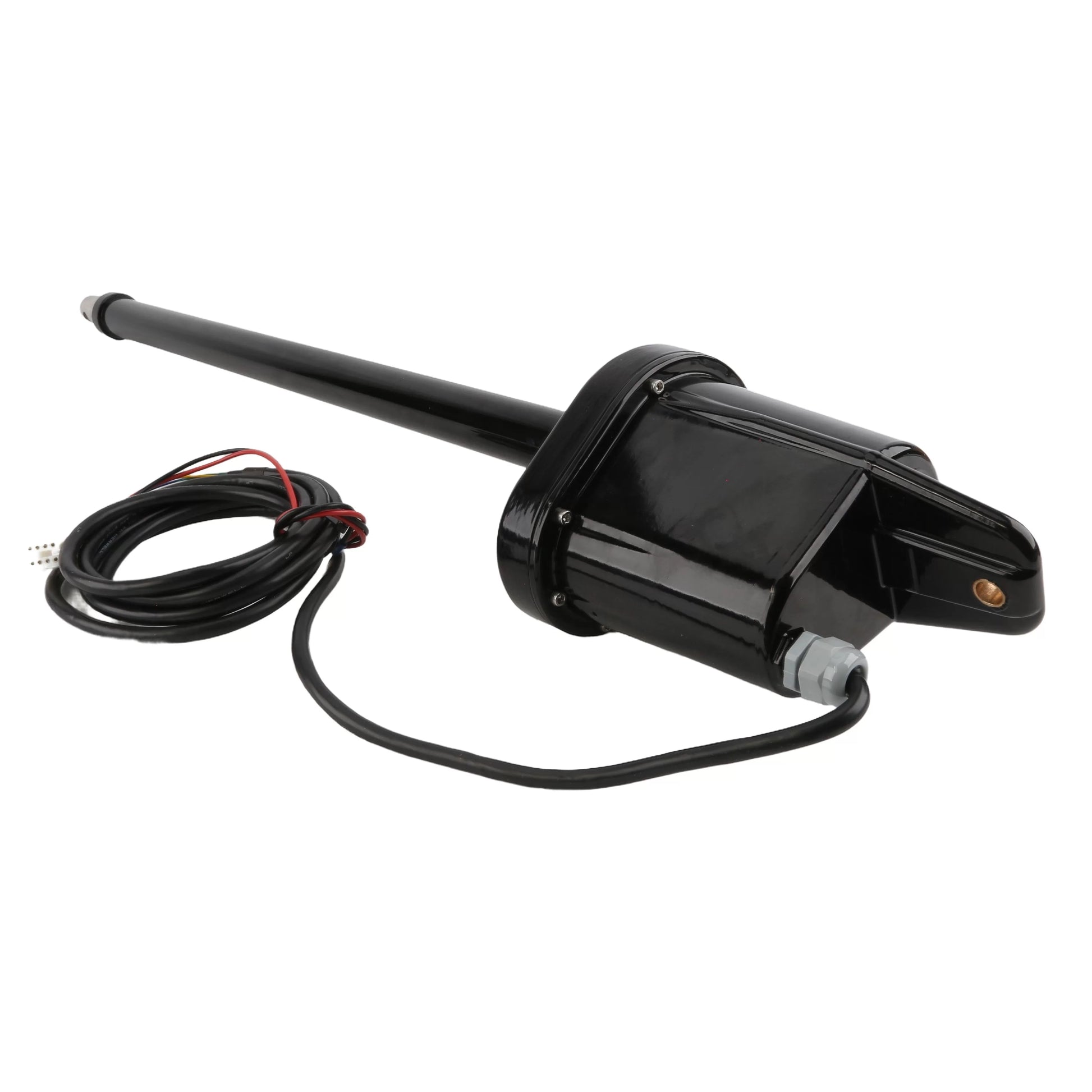

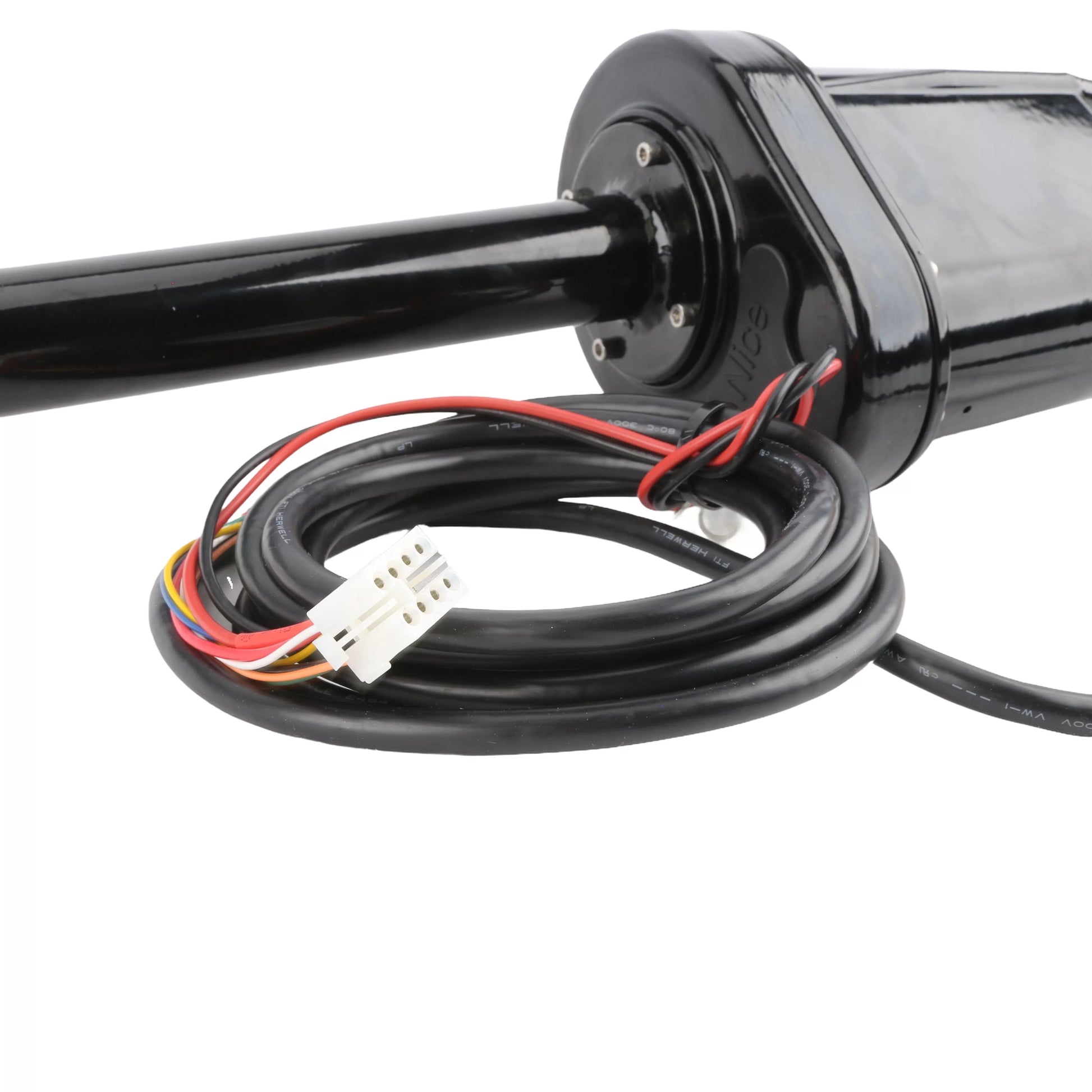

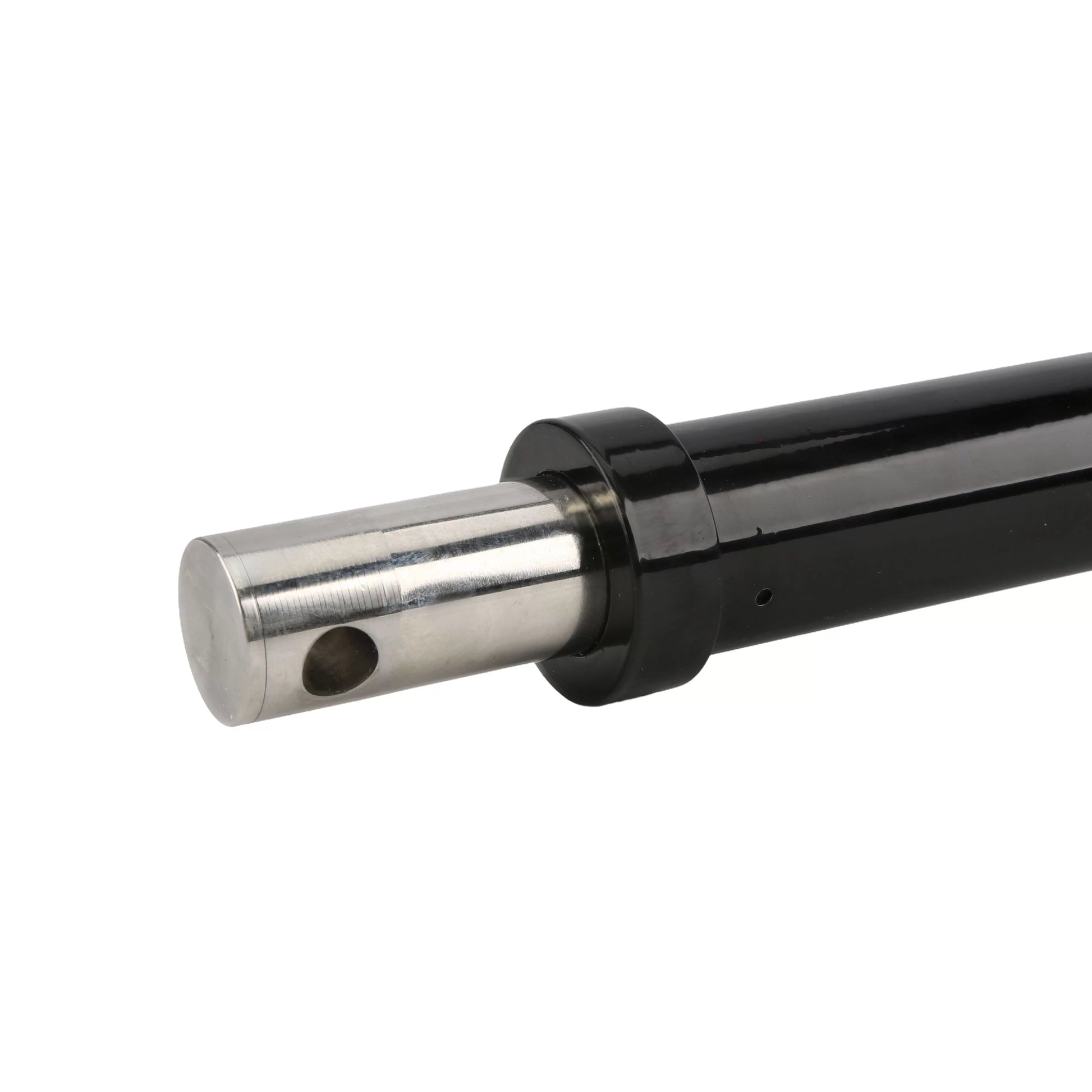

- Nice Apollo 1600 Dual Linear Actuators

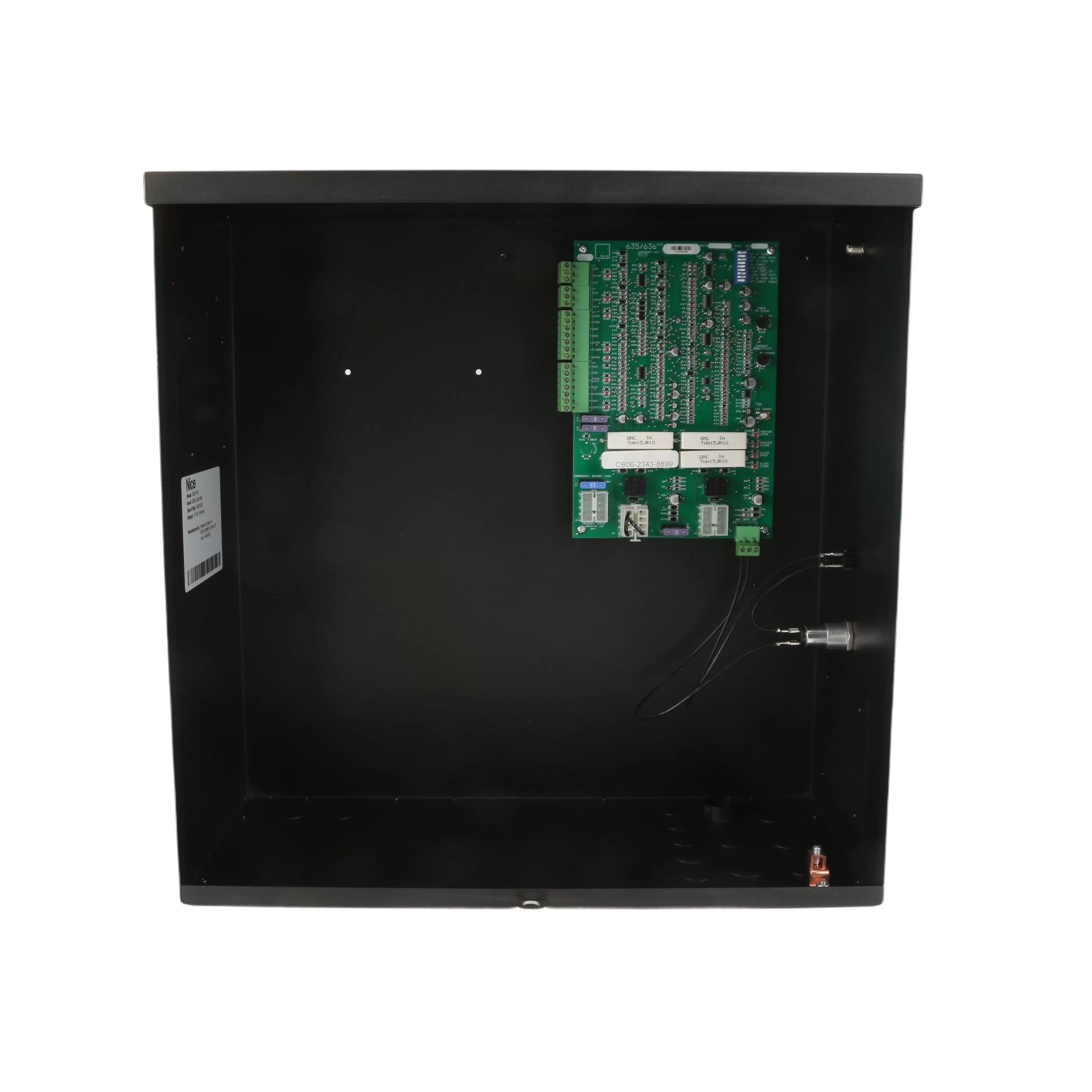

- 636 Advanced Control Board

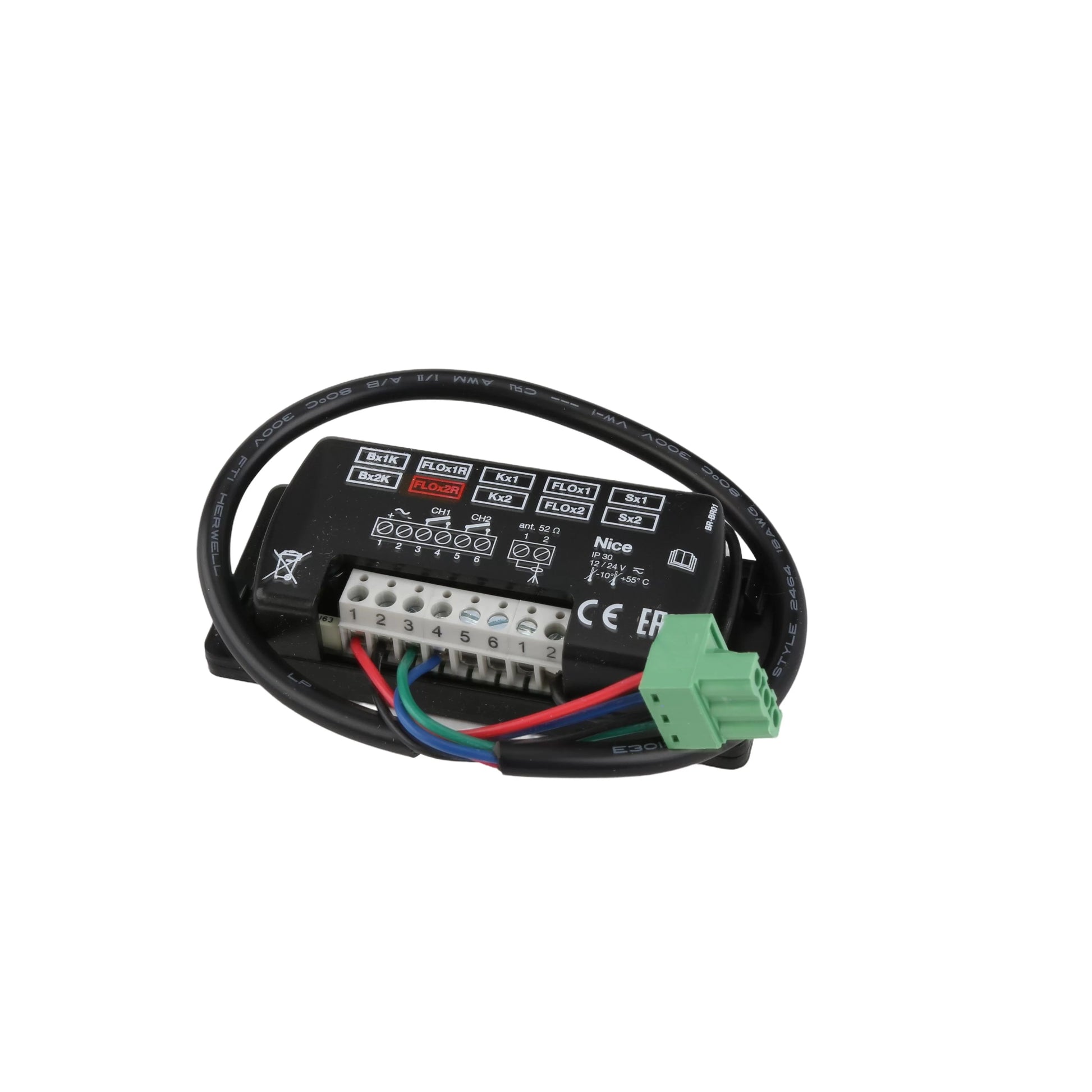

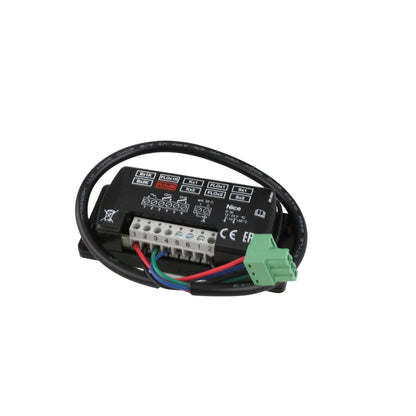

- Apollo Wireless Receiver

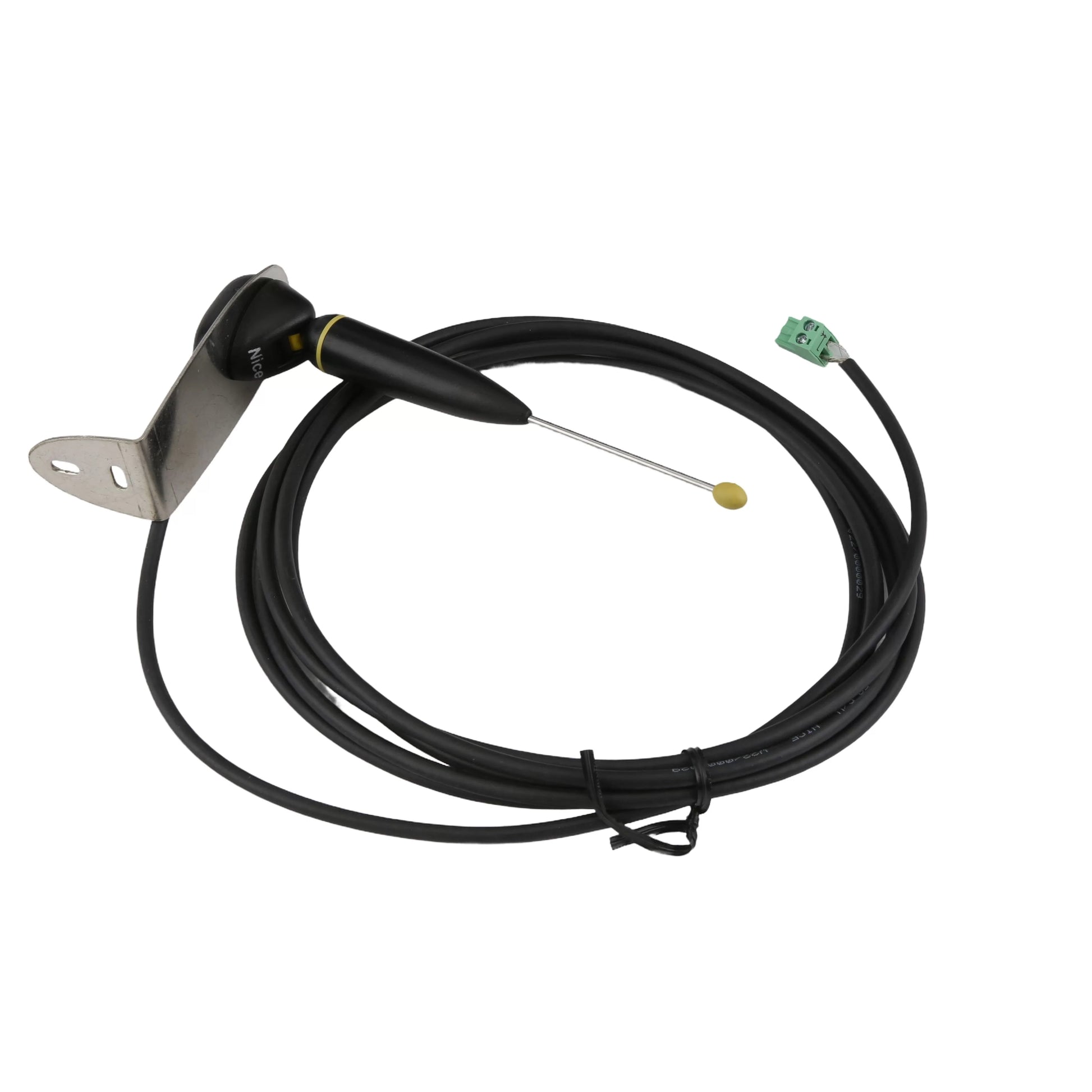

- Adjustable Long-Range Antenna
Key Features:
- Supports dual swing gates up to 16 ft per leaf and 600 lbs
- Compatible with solar and AC power sources
- Push-to-open or pull-to-open installation options
- Weather-resistant NEMA 3R-rated control box
- Fast 15-second open/close cycle per direction
- Rust-proof, self-lubricating actuators with adjustable limit switches
- Made in the USA
Technical Specifications:
| Attribute |
Details |
| Control Box Dimensions |
18" x 18" x 8" |
| Primary Actuator Cable |
8 ft |
| Secondary Actuator Cable |
38 ft |
| Shipping Weight |
100 lbs (45 kg) |
| Input Voltage |
12V DC |
| Actuator Voltage |
12V DC |
| Usage Class |
Class I & II |
| Gate Type |
Dual Swing Arm |
| Max Gate Length (per leaf) |
16 ft |
| Max Gate Weight (per leaf) |
600 lbs |
| Power Source Compatibility |
Solar or AC |
| Warranty |
Two-Year Manufacturer’s Limited |
| Manufacturer |
Nice Apollo Gate Operators |
| Condition |
New |
| SKU |
1600 |
| Board Model |
636 |
| Model Number |
Apollo 816-1 |
Additional Resources:
- Installation Manual
- Actuator Setup Guide
- Warranty Information
