Platinum Tools Fault Trapper

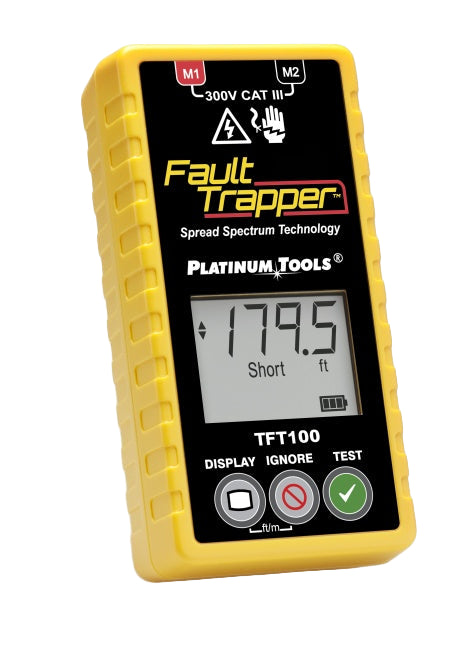

Platinum Tools TFT100 Fault Trapper – SSTDR Diagnostic Tool for Intermittent Electrical Fault Detection

Say goodbye to the guesswork in troubleshooting electrical faults. The Platinum Tools TFT100 Fault Trapper is a powerful diagnostic solution built for trained electrical professionals who need to pinpoint elusive issues—whether it’s intermittent opens, shorts, or arc faults that standard breakers fail to detect.

Leveraging advanced Spread Spectrum Time Domain Reflectometry (SSTDR) technology, the TFT100 continuously monitors live, energized circuits up to 300 volts and 40 amps. It captures fault type, time, and location, storing data for post-event review. This makes it ideal for unattended monitoring of dedicated circuits where sporadic faults may otherwise go unnoticed.

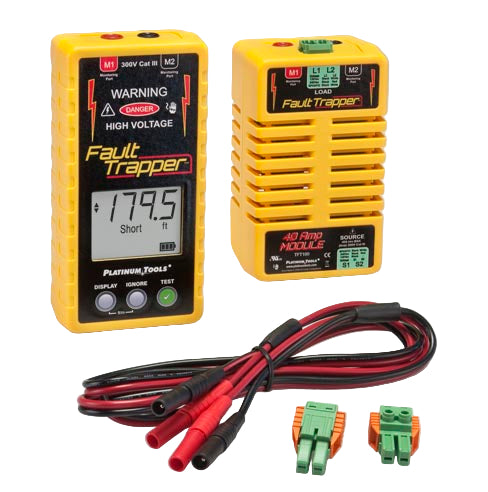

No splicing or complex setup is required—just plug in the 40A in-line module to isolate the monitored circuit from the panel and let the tool do the rest. With a user-friendly interface, backlit LCD display, and onboard memory, this diagnostic device offers clarity, confidence, and efficiency on every job.

Key Features

• In-line live circuit monitoring rated for up to 300 VAC / 40 amps
• Detects intermittent opens, shorts, and arc faults with SSTDR technology
• Event memory stores fault type, time, and distance data for later review
• Displays fault location in feet or meters for fast pinpointing
• No splicing required—installs using existing wiring interfaces
• Backlit LCD ensures visibility in low-light work environments
• Three-button control panel simplifies operation
• Backup battery captures data during power interruptions
• Rated 300V CAT III, 120/240VAC, single-phase compatible
• Compliant with UL 61010-1:2012 and CAN/CSA-C22.2 No. 61010-1-12 standards

Important Note
This diagnostic tool is intended for use by trained and certified electrical professionals only.
