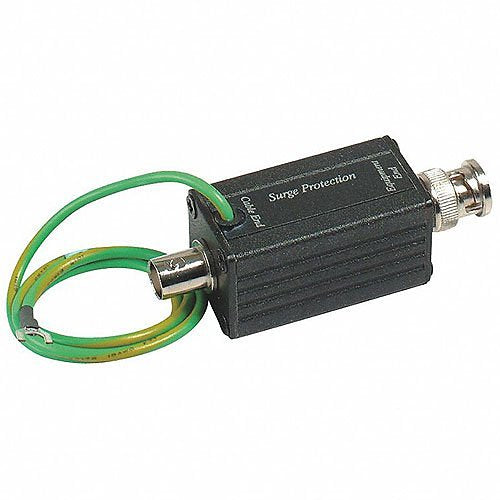

SPCOAX2 Speco Coaxial Video Surge Protector, TVI, CVI, AHD, 960H

Speco Coaxial Video Surge Protector – Passive Protection for Analog CCTV Video Feeds

Ensure the long-term reliability of your surveillance system with the Speco Coaxial Video Surge Protector—a passive inline solution designed to shield analog CCTV equipment from voltage surges and transient interference. Compatible with multiple coaxial video formats including TVI, CVI, AHD, and 960H, this device prevents distortion and signal loss in environments prone to electrical grounding conflicts or power anomalies.

Built for fast installation and long-term performance, it’s ideal for protecting cable runs in outdoor applications, metal structures, and industrial facilities where signal integrity is critical.

Key Features

• Protects analog video feeds from electrical surges and transient voltage spikes
• Compatible with TVI, CVI, AHD, and 960H video transmission standards
• Recommended for metal buildings, outdoor installations, and high-interference zones
• Improves signal stability and visual clarity in surveillance systems
• Passive design—no power supply required for operation
• Simple inline setup using BNC male-to-female connectors with 25 cm flexible leads
• Discrete, compact housing built for durability and professional installation

Technical Highlights

• Insertion Loss: 0.5 dB
• Frequency Response: 0–3 dB at 10 MHz
• Input/Output Resistance: 75 ohms
• Isolation Voltage: Minimum 600 VDC
• Insulation Resistance: 100 mega-ohms
