VGAHD2 Speco VGA to HDMI Converter

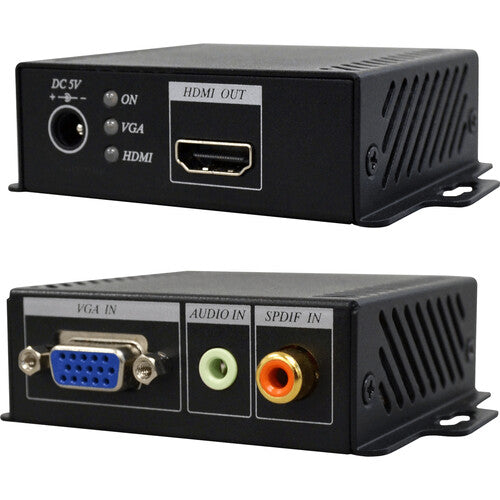

Speco SPE-VGAHD2 VGA to HDMI Converter – High-Resolution Video with Integrated Audio for Digital Displays

Bridge the gap between legacy VGA sources and modern HDMI displays with the Speco SPE-VGAHD2 Converter. This compact unit combines VGA video and stereo or digital SPDIF audio into a unified HDMI output, delivering high-resolution visuals with synchronized sound. Ideal for commercial AV setups, workstation upgrades, and surveillance centers, it offers seamless compatibility and NDAA Section 889 Part B compliance for secure institutional deployments.

Whether you're integrating older PC systems or optimizing control room video infrastructure, this plug-and-play converter ensures reliable performance with minimal setup.

Key Features

• Converts VGA video and analog/digital audio into HDMI output
• Automatically selects between 3.5mm stereo and SPDIF audio inputs
• Supports HDMI and DVI output modes (DVI cable sold separately)
• Encodes audio directly into the HDMI signal for unified transmission
• Compatible with resolutions up to 1920×1200 at 60Hz

Technical Highlights

• VGA Input: DB15 connector, supports up to 1920×1200@60Hz
• Analog Audio: 3.5mm stereo jack (max 3Vp-p, 10K Ohms)
• Digital Audio: SPDIF RCA (75 Ohms)
• HDMI Output: Type-A connector
• Power Supply: 5VDC, 1A adapter included
• Power Consumption: 500mA
• Operating Temp: 0°C to 80°C (30°F to 131°F)
• Storage Temp: -20°C to 85°C (-4°F to 185°F)
• Humidity Tolerance: up to 95%
• Dimensions: 6.62 × 3 × 1 in (92 × 75.5 × 25 mm)
• Weight: 0.37 lbs (170 g)
• NDAA Section 889 Part B Compliant
