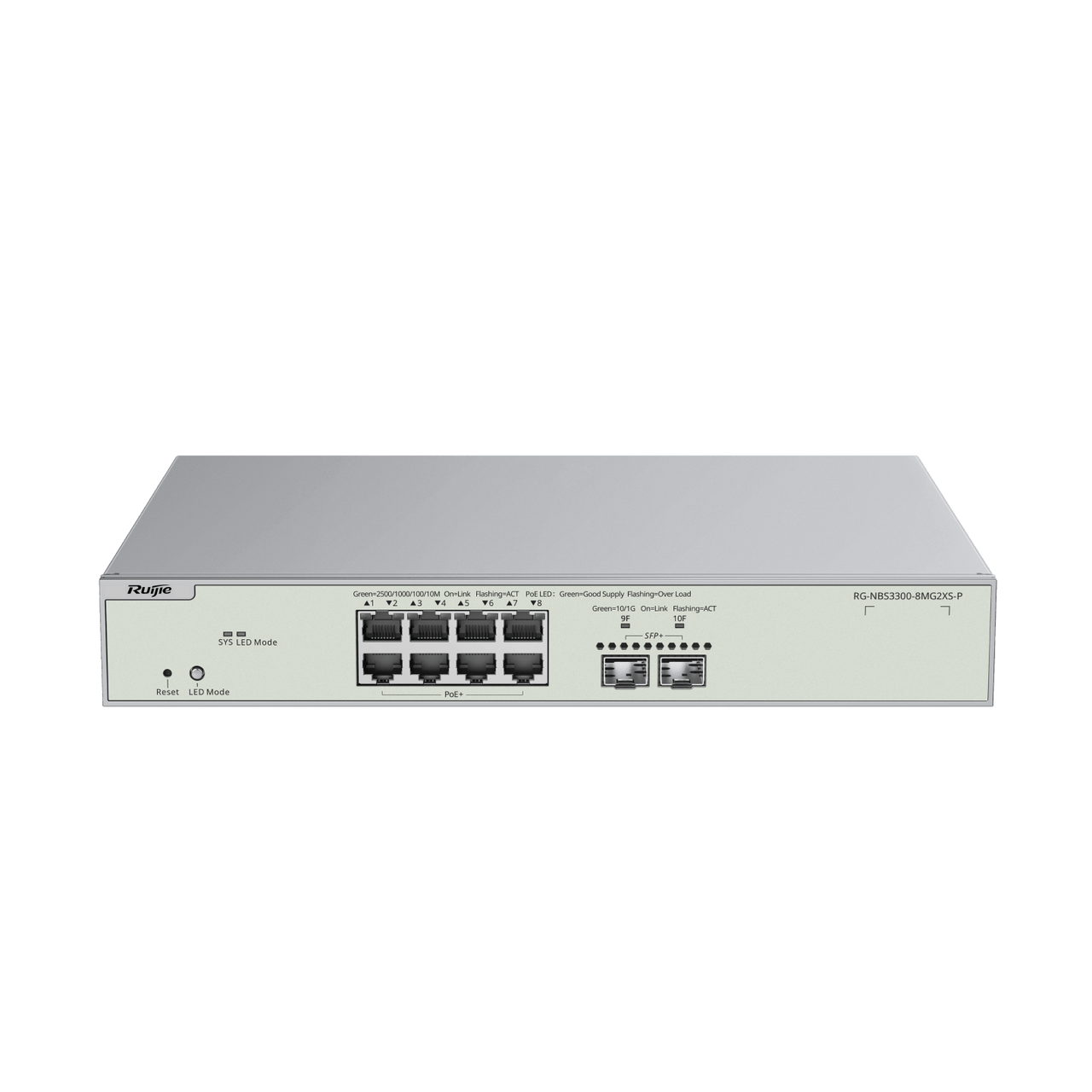

Reyee Enterprise Grade 8-Port Gigabit Layer 2 Cloud-Managed Switch – High-Performance Smart Network Infrastructure
The Reyee RG-NBS3300-8MG2XS-P delivers enterprise-grade speed, security, and scalability for demanding commercial and industrial environments. Featuring 8 Gigabit Ethernet ports and 2 SFP+ uplink ports, this Layer 2 managed switch supports a switching capacity of 80 Gbps and a forwarding rate of 58.72 Mpps—designed for data-intensive deployments such as blockchain node management, surveillance systems, and large-scale LANs.
Advanced networking features like link aggregation, IGMP snooping, camera recognition, and self-organizing network (SON) support ensure streamlined bandwidth distribution and enhanced device security. Cloud-based administration via Ruijie Cloud allows IT teams to monitor, configure, and scale infrastructure remotely, while tabletop or rack mounting flexibility simplifies installation in new builds or retrofits.
Key Features

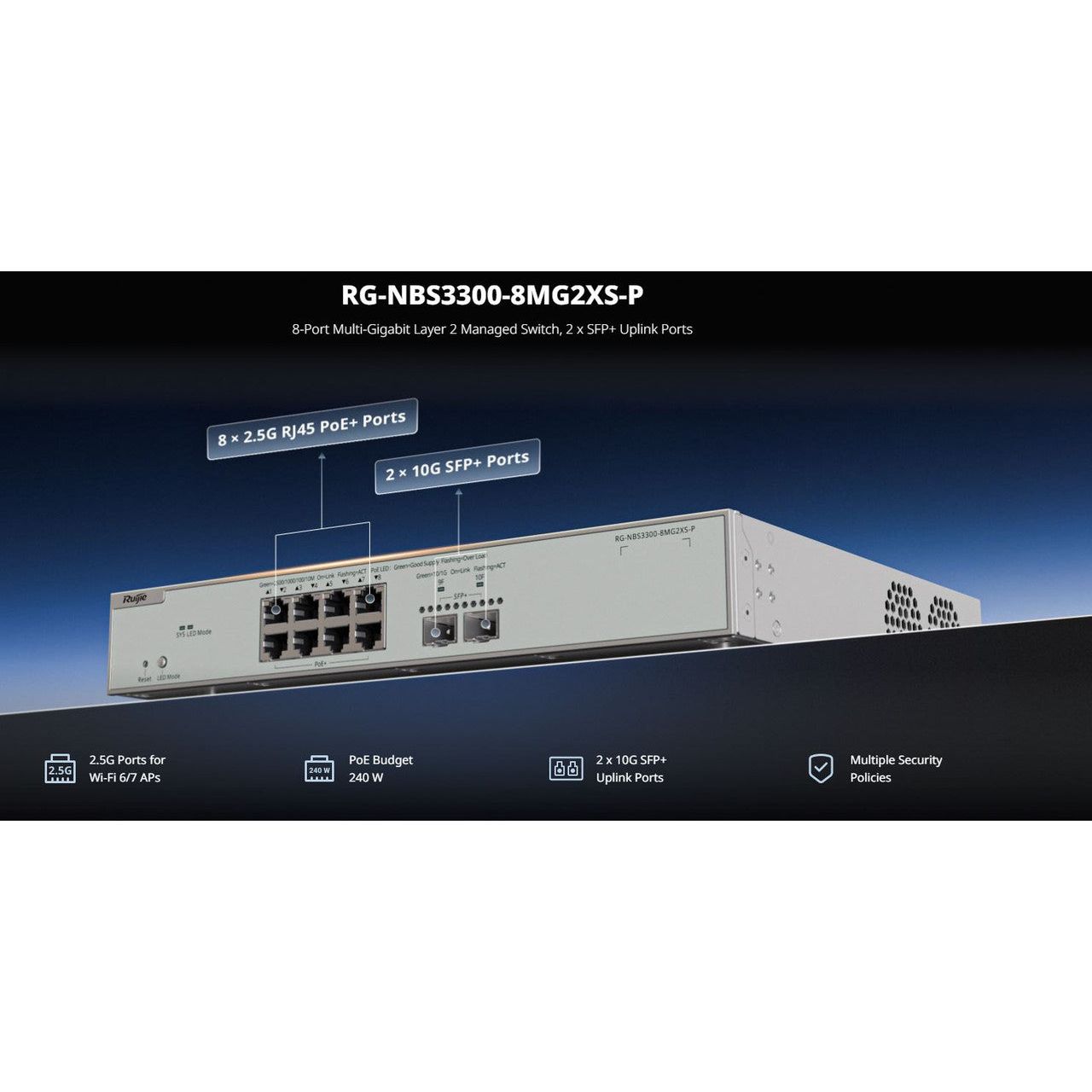

- 8 x 10/100/1000Base-T Ethernet ports + 2 SFP+ uplink ports
- 80 Gbps switching capacity with 58.72 Mpps forwarding rate
- Layer 2 architecture for high-speed local network traffic
- Link aggregation support for improved redundancy and throughput
- IGMP Snooping v1/v2 prevents unauthorized device access

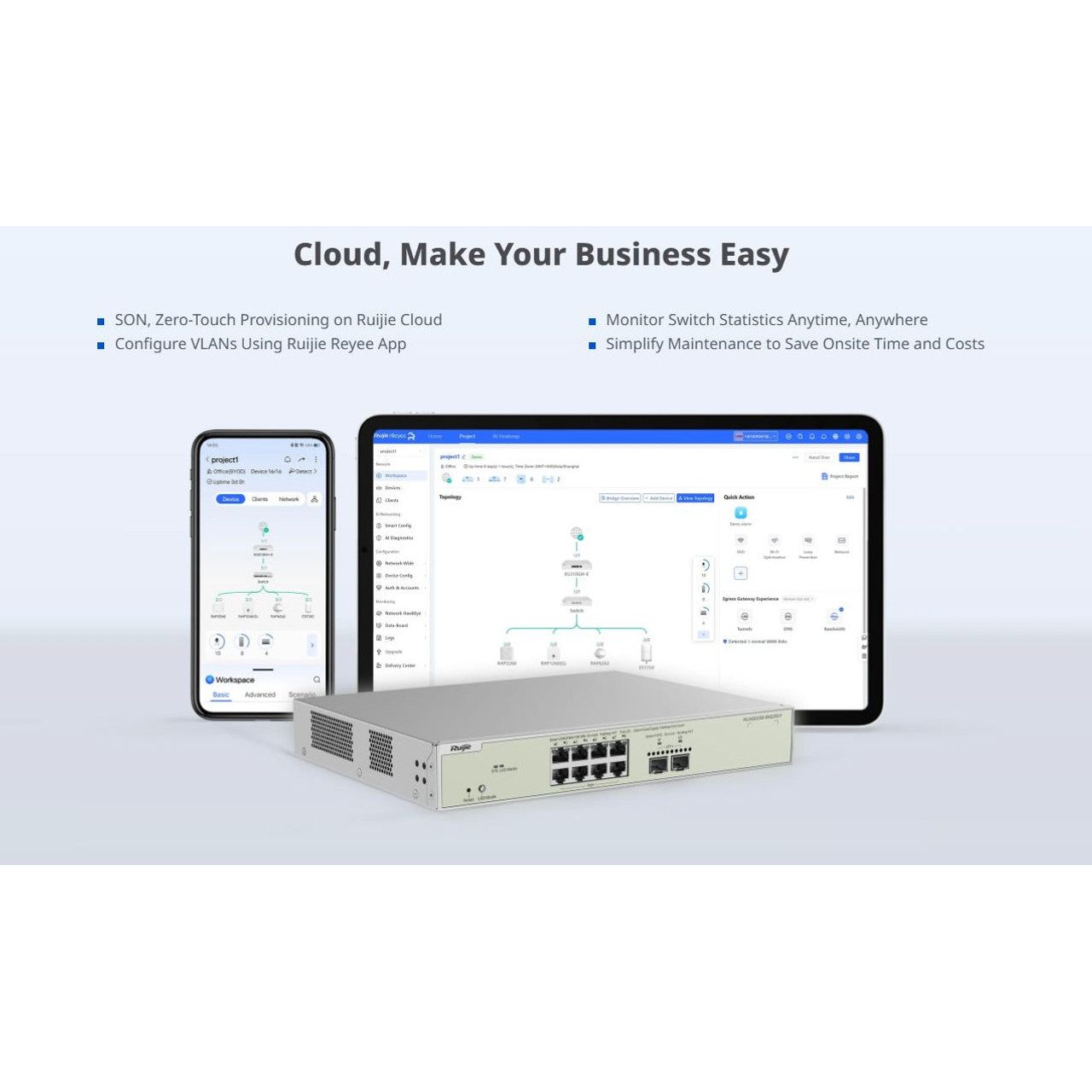

- Cloud management via Ruijie Cloud platform
- SON (Self-Organizing Network) with IP, camera recognition supported
- Security policy integration and ACL management

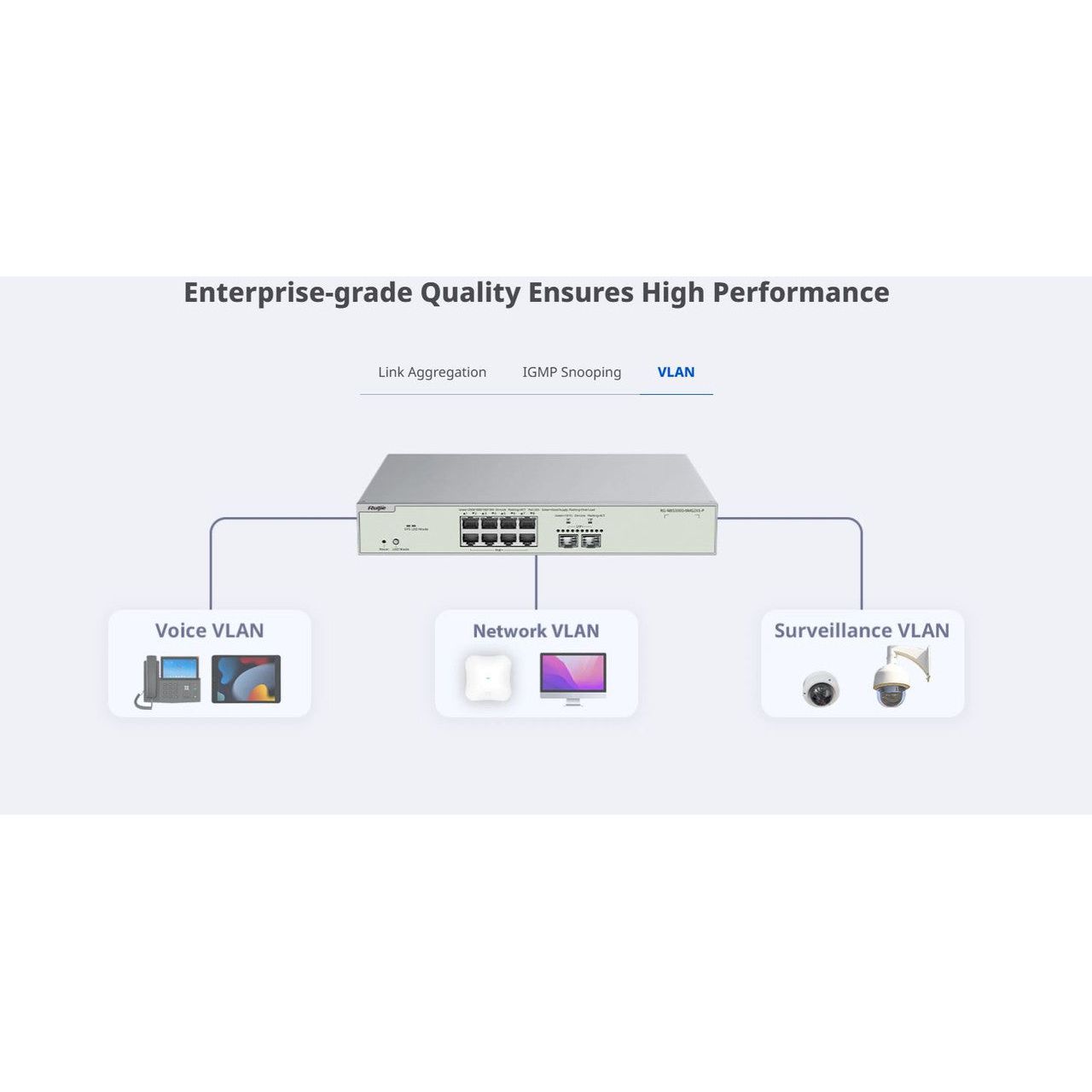

- Supports 4094 VLANs, 16000 MAC address table entries
Technical Specifications
Performance & Networking
- Layer Type: Layer 2
- Switching Capacity: 80 Gbps
- Forwarding Rate: 58.72 Mpps
- Ports:
- 8 x 10/100/1000Base-T
- 2 x SFP+
- MAC Address Table: 16000 entries
- VLAN Capacity: 4094
- Jumbo Frame Support (MTU): 9216 bytes
- Link Aggregation Groups (LAG): 16
- Access Control Lists (ACL): 1900
Security & Protocols
- IGMP Snooping v1/v2: Supported
- CPP (Control Plane Protection): Supported
- EEE (Energy Efficient Ethernet): Supported
- HTTP/HTTPS Access: Supported
- Camera Recognition: Supported
- Self-Organizing Network (SON): Supported
Power & Environmental
- Rated Voltage Range: 100–240 V
- Max Voltage Range: 90–264 V
- Frequency: 50/60 Hz
- Rated Current: 4.5 A
- Fan Airflow Direction: Left-to-Right
- Port Surge Protection: 6 kV
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
Physical & Warranty
- Form Factor: Desktop / Rack-mountable
- Dimensions: 300 mm x 233 mm x 43.6 mm (11.81 x 9.17 x 1.72 in)
- Weight: 2.64 kg (5.82 lbs)
- Warranty: 5-Year Manufacturer Warranty
